Automatic Net Bag Packing Machine with Stainless Steel 304/316 Construction 30bag/min Capacity and 1.5 Years Warranty

Name: Automatic Net Bag Packing Machine with Stainless Steel 304316 Construction 30bagmin Capacity and 15 Years Warranty
Brand: TOUPACK
Price: 4 USD

Cheap Automatic Net Bag Packing Machine with Stainless Steel 304/316 Construction 30bag/min Capacity and 1.5 Years Warranty wholesale

Place of Origin : Guangdong, China

Brand Name : TOUPACK

MOQ : 1

Price : $4,900-7,900

Production capacity : 30bag/min

Weight : 78kg

Voltage : 220V

Material : Stainless Steel 304/316

Core components : PLC, MCU

Feeding type : Vibration Bowl

Minimum packing weight : 0.5kg

Maximum packing weight : 5kg

Perimeter of net bag : 380/400mm

Maximum net bag length : 200m

Packaging speed : 25-40 BPM

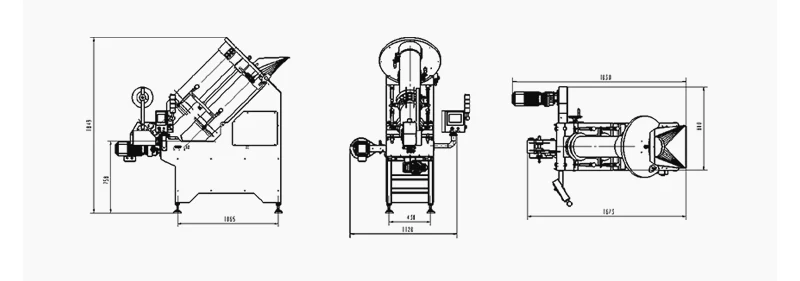

Machine dimension : 1830mm*1128mm*1849mm

Machine weight : 382.9kg

Package weight : 450kg

Hopper surface : Plain plate hopper

Contact Now

Automatic Net Bag Packing Machine with Stainless Steel 304/316 Construction 30bag/min Capacity and 1.5 Years Warranty

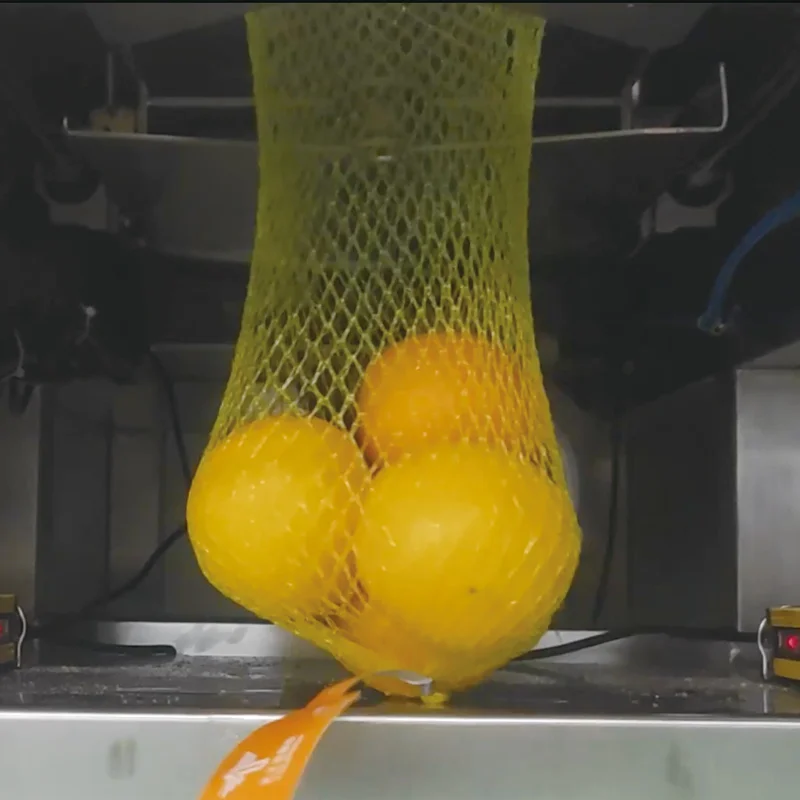

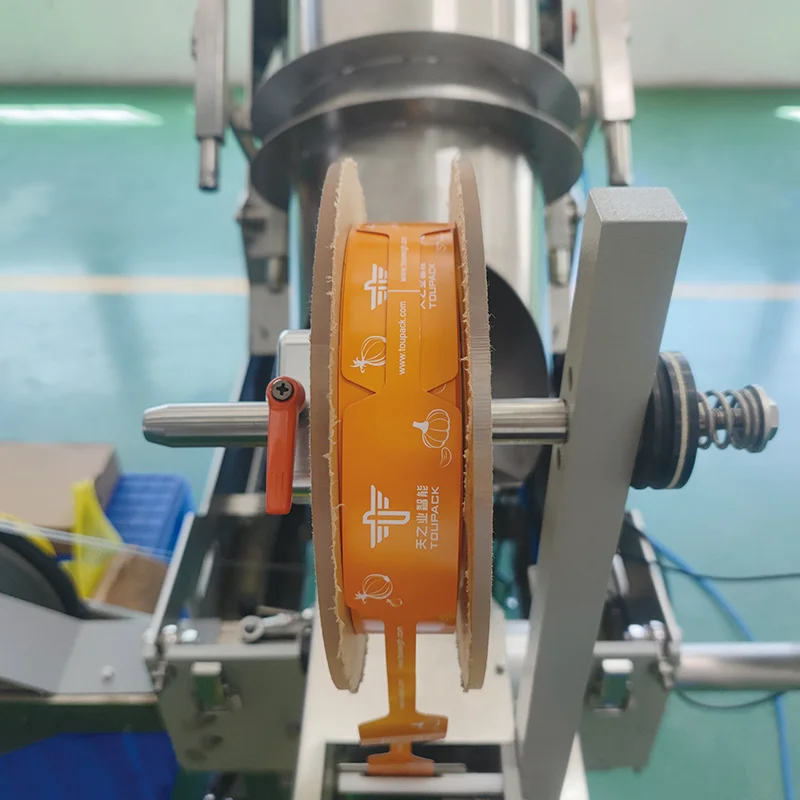

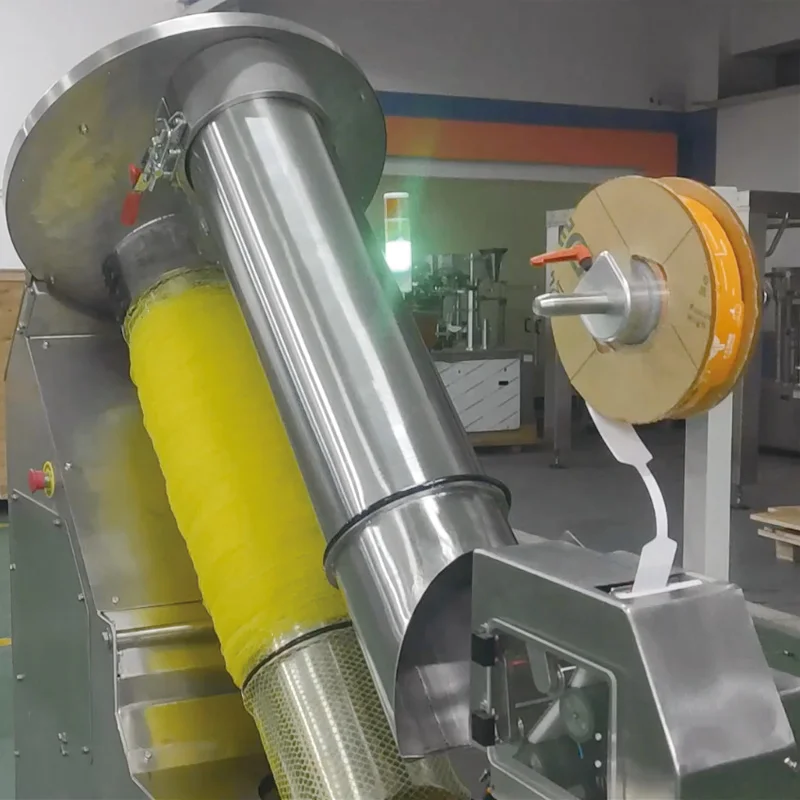

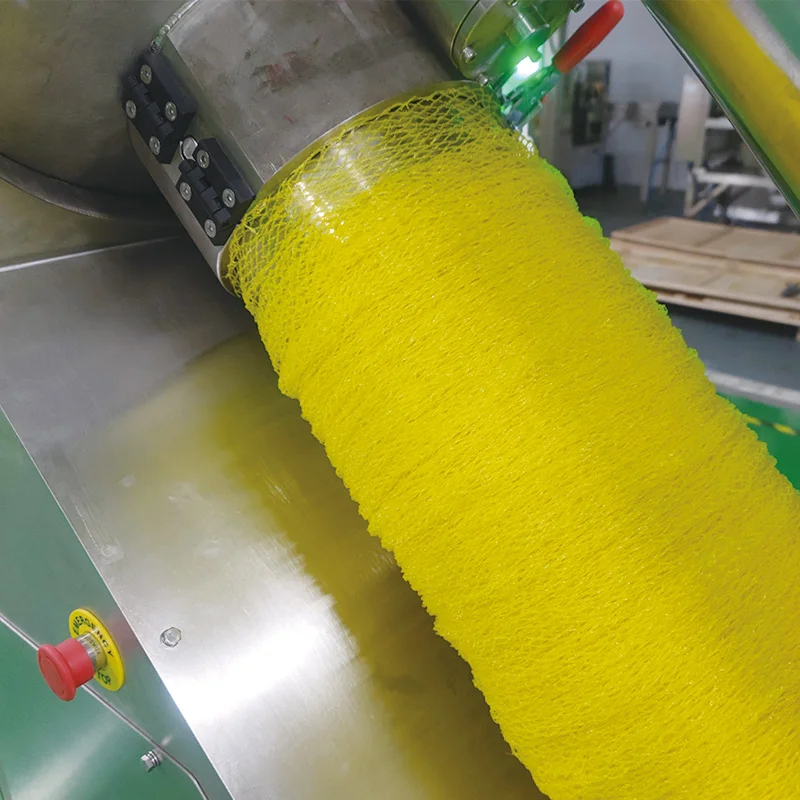

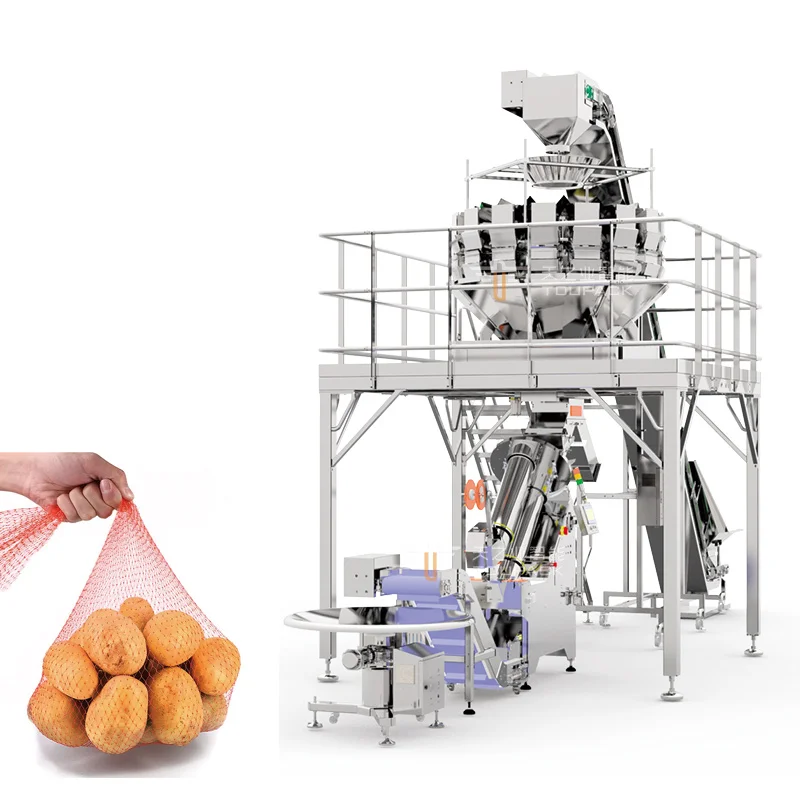

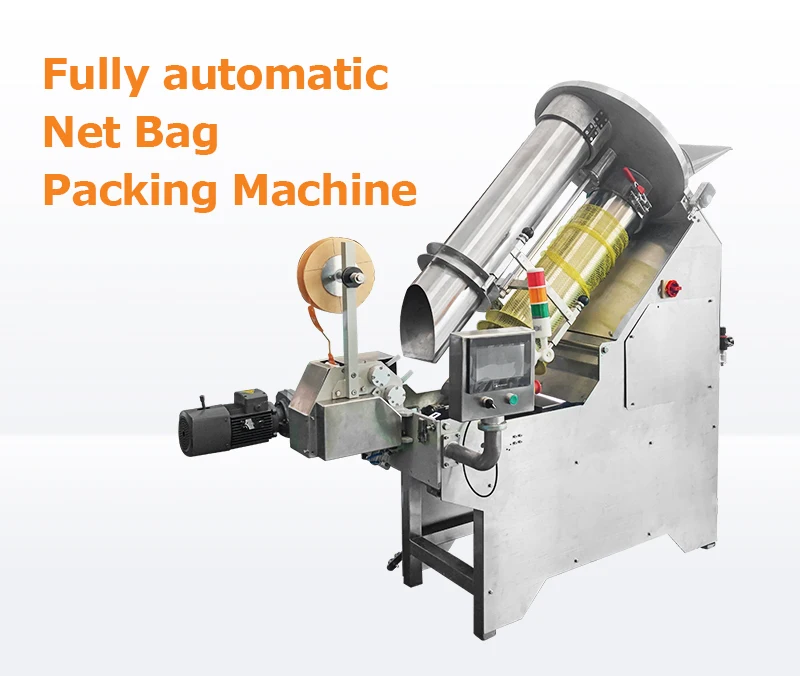

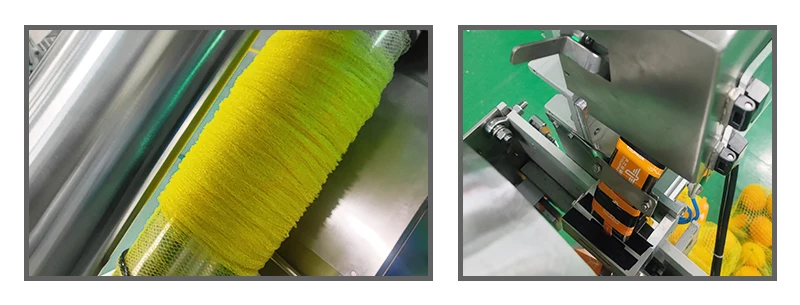

Application: This machine is an automatic net bag packing machine for packing vegetables, fruits and hardware accessories that do not need to be sealed and airtight. product feature： 1. The machine adopts hard carbon steel plate and stainless steel material, safety and health, greatly improve the corrosion resistance of the equipment. 2. The tube used can make the net bag automatically replaced after it used. 3. Adopt stable performance, long service life of AirTAC pneumatic components. 4. The combination of two positioning gears and proximity switches make the push net is precisely in place 5. Adopt reliable performance, convenient operation LS inverter, Schneider PLC and touch screen electrical control. 6. The package size is standard. 7. It is convenient and quick to change the packing tie 8. The operation interface is popular, simple and convenient.

Model	LS-DCF-1/G-35
Packable item	Whatever is actually required
Minimum packing weight	0.5kg
Maximum packing weight	5kg
Perimeter of net bag	380/400mm
Maximum length of the net bag installed on the tube	200m
Packaging speed	25-40 BPM
Weight	450kg
Machine dimension	1830mm1128mm1849mm
Machine weight	382.9kg
Package weight	450kg
